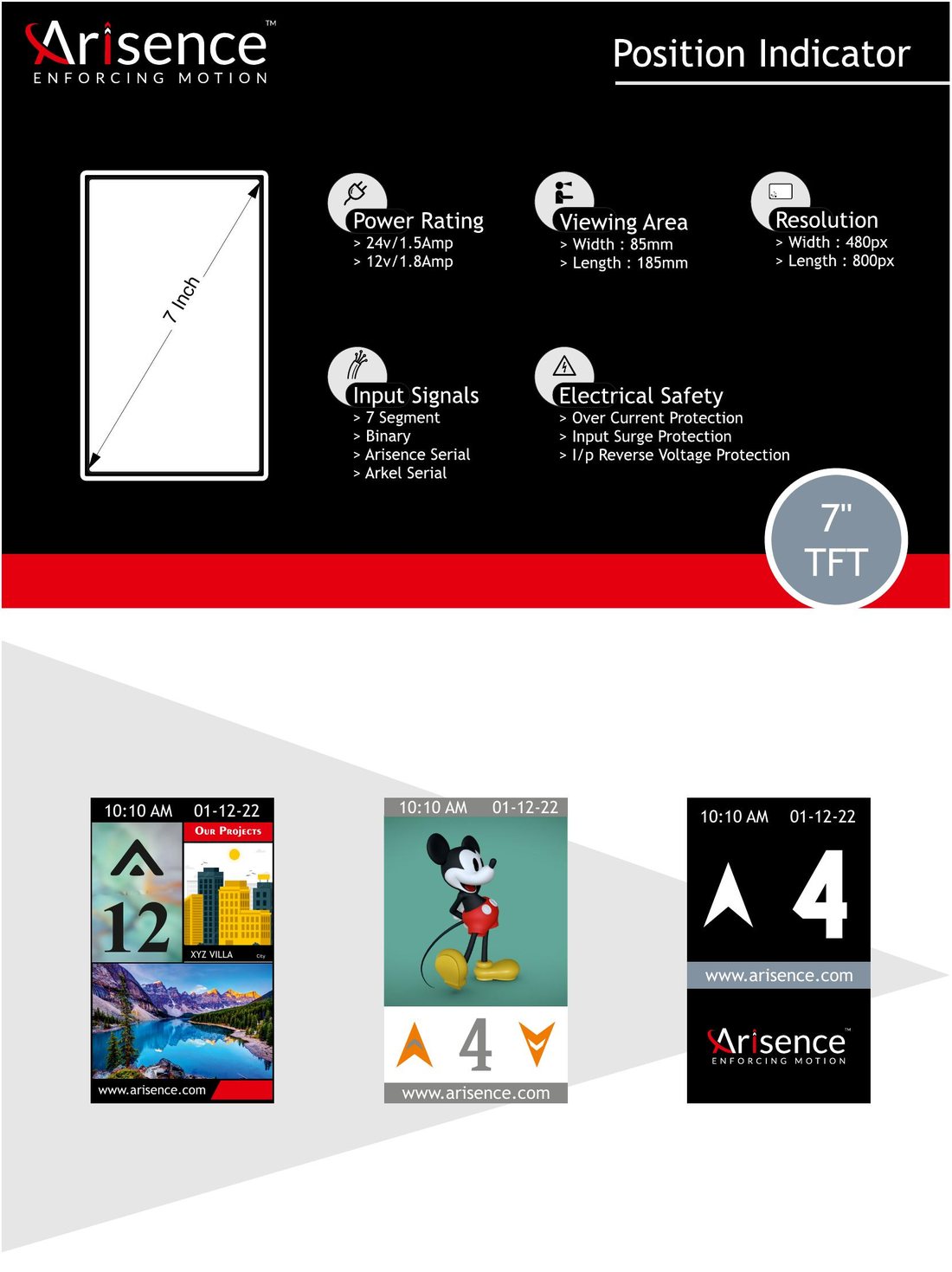

7" TFT
- Power rating
- 24 V / 1.5 A, 12 V / 1.8 A
- Viewing area
- 85 mm wide x 185 mm long
- Resolution
- 480 x 800 px
Displays & Position Indicators
LED displays and TFT position indicators in every colour and size a lift needs.

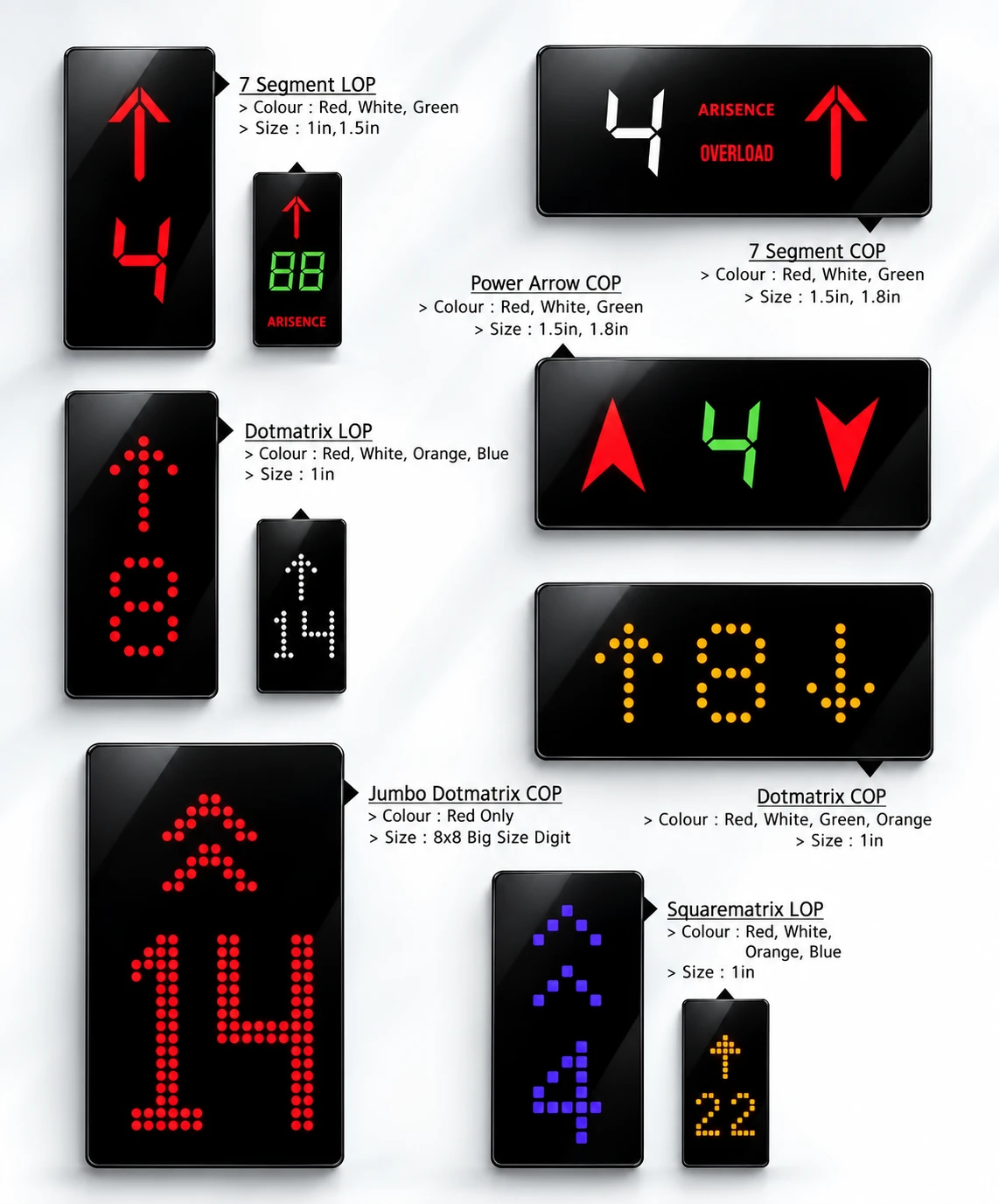

LED displays
Seven segment to jumbo dot matrix.
| Display | Colour | Size |
|---|---|---|
| 7 Segment LOP | Red, White, Green | 1 in, 1.5 in |
| 7 Segment COP | Red, White, Green | 1.5 in, 1.8 in |
| Power Arrow COP | Red, White, Green | 1.5 in, 1.8 in |
| Dotmatrix LOP | Red, White, Orange, Blue | 1 in |
| Dotmatrix COP | Red, White, Green, Orange | 1 in |
| Jumbo Dotmatrix COP | Red only | 8x8 big size digit |
| Squarematrix LOP | Red, White, Orange, Blue | 1 in |
TFT position indicators
Full colour screens for the cabin.
- Input signals
- 7 Segment, Binary, Arisence Serial, Arkel Serial
- Electrical safety
- Over current protection, input surge protection, input reverse voltage protection
10" TFT
- Power rating
- 24 V / 2 A, 12 V / 2.5 A
- Viewing area
- 143 mm wide x 235 mm long
- Resolution
- 600 x 1024 px
Start a project
Tell us your lift. We will build the panel.
Send the COP and LOP size, display and lock you need. Custom hardware and software, including PCB design, is part of what we do.
