COP & LOP Series
Touch and button car operating panels and landing operating panels. One place for all call button needs of an elevator.

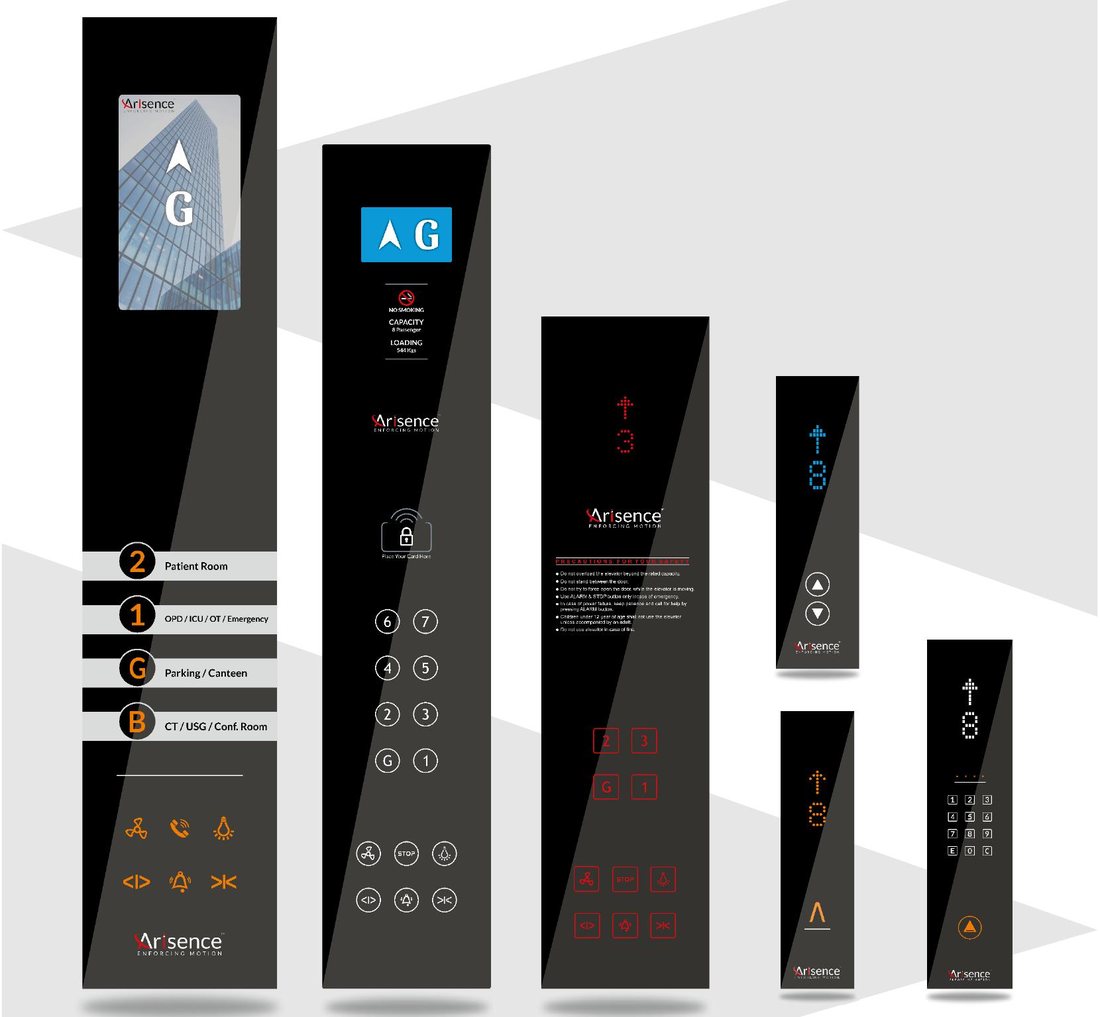

Touch
ABT11 & AWT14
Black and white glass touch panels
- Available COP size
- 800x200, 1000x200, 1200x210, 1300x210 mm
- Available LOP size
- 310x100, 350x100, 370x105 mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System
Touch
V2RT
Touch panel with round-key lock options
- Available COP size
- 900x180, 1200x180 mm
- Available LOP size
- 320x85 mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
LCD driver back side mounting for LOP TFT display.
Button
V2RB
Button panel in black and white glass
- Available COP size
- 900x180, 1200x180 mm
- Available LOP size
- 320x85 mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
LCD driver back side mounting for LOP TFT display.
Touch
V2IT
Touch panel with steel end caps
- Available COP size
- 900x200, 1200x200 mm
- Available LOP size
- 364x90, Customized mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
LCD driver back side mounting for LOP TFT display.
Button
V2IB
Button panel with steel end caps
- Available COP size
- 900x200, 1200x200, 1500x200 mm
- Available LOP size
- 365x90, Customized mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
LCD driver back side mounting for LOP TFT display.
Touch and button
V2AT & V2AB
Glass and stainless steel, touch and button
- Available COP size
- 900x185, 1200x185, 1600x185 mm
- Available LOP size
- 320x85, 550x100, Customized mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
LCD driver back side mounting for LOP TFT display.

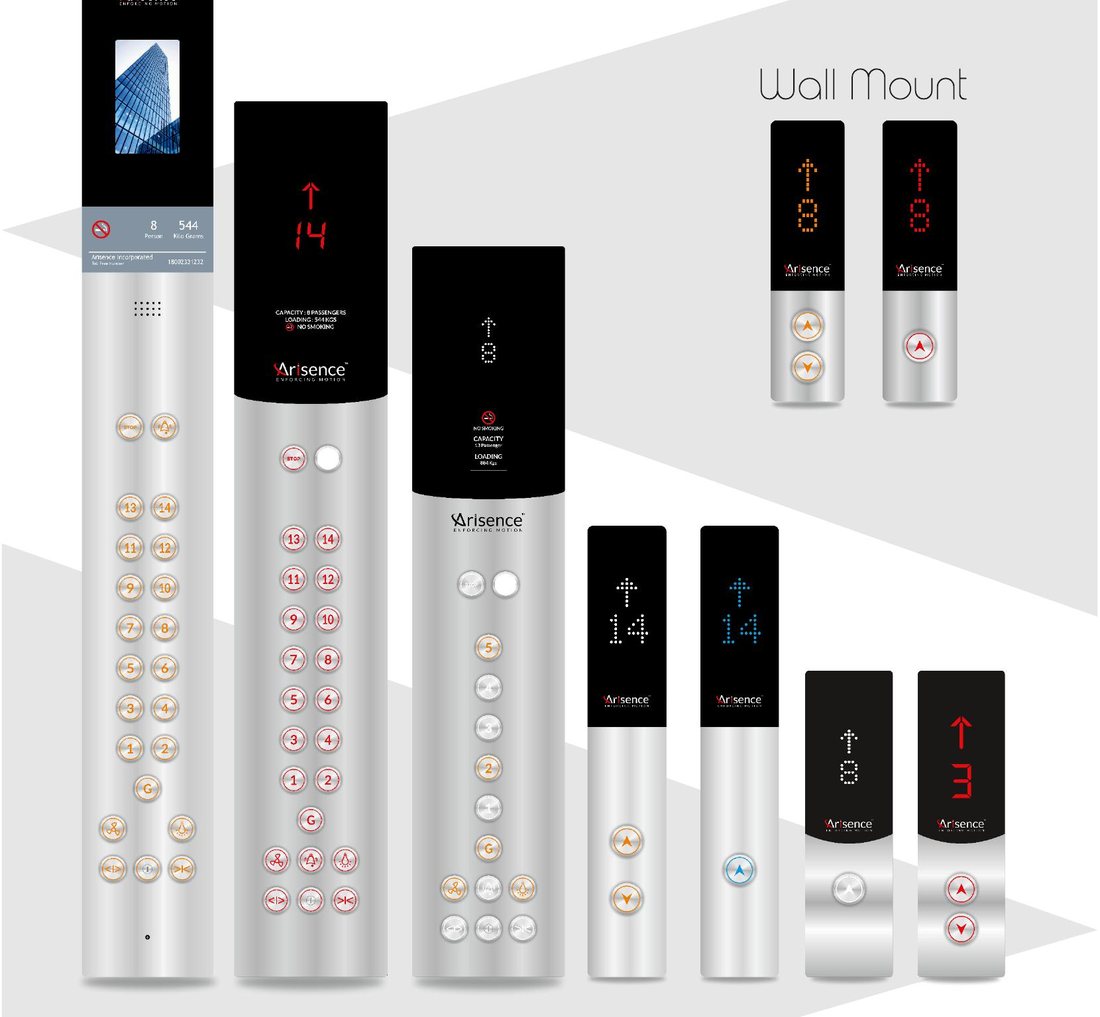

Button
ABB11 & AWB14
Stainless steel button panels, wall mount LOP
- Available COP size
- 800x200, 850x180, 1000x200, 1200x210, 1550x185 mm
- Available LOP size
- 310x100, 320x85, 550x110 mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
Custom
Designer LOP & COP
Colour and finish made to the project
- Available COP size
- 800x200, 900x180, 1000x200, 1200x210, 1300x210, 1550x185 mm
- Available LOP size
- 310x100, 320x85, 350x100, 370x105, 550x110 mm
- Compatible COP display
- 7-Segment, Dotmatrix, Square Matrix, Jumbo Dotmatrix, 5"TFT, 7"TFT, 10"TFT
- Compatible LOP display
- 7-Segment, Dotmatrix, Square Matrix, 3.5"TFT, 4.3"TFT
- Other
- RFID Access Control, Keypad Base Lock System, Finger print Base Lock System
Finger print lock on acrylic type only.
Brochure and company profile
Take the whole range with you.
Every COP and LOP series with available sizes, displays, position indicators and lock modules in one PDF. The company profile covers our team, plant and policies.
Start a project
Tell us your lift. We will build the panel.
Send the COP and LOP size, display and lock you need. Custom hardware and software, including PCB design, is part of what we do.
